Adaptive
Force Module for medical robot
Alexander
Razumov – Russian Science Center of Restorative Medicine and
Balneology
Michael Rachkov, Vadim
Golovin, Vitaliy Zhuravlev – Moscow State Industrial University
Introduction
Advantages
of medical robot applications for manual therapy and massage were
discussed in some papers [1, 4, 5, 7, 9]. It was shown that the usage
of only program control limits the robot possibilities. The medical
robot possibilities are extended significantly by implementation of
control that is adaptive to patients. It can be done by means of
technical vision systems determining patient’s location relatively
to the robot. Sensor information can be used for planning of tool
trajectories. There are diagnostic devices using myography,
measurement of skin resistance, local temperature, a heart rate, and
arterial pressure. The force adaptation for interaction control
between the robot tool and the patient’s body is described in this
paper.
The
model of the force loading of soft tissues
first has been given in [7], and developed in [1]. Some experimental
soft tissues properties are considered in [2]. These investigations
are continued in this paper. Also, the possibility of standard robots
applications with the force module as a separate design unit is
considered.
1.
The principles of the system design
The
robot tool moves along the trajectory
,
causing an interaction force between the robot tool and the
patient’s body
in order to have normal and tangential deformations of soft tissues
that gives the massage therapeutic effect measured by the vector of
biomedical parameters of the patient’s state
.
In this
consecution of subaims
,
we will consider only two first subaims. The trajectory
is determined by program only partially, i.e. by pattern of massage
movements or a circle arc around joint axis, while controlling the
movement in manual therapy procedures. Only when the set force
is achieved, the real trajectory
can be approached to the sample trajectory
that is repeated during the next movements. The program force
is set in aim coordinates (along trajectory of the last link where
this force can be measured by the multicomponent force sensor).
There
are some design decisions of a
position/force control of the medical robot, for example to make each
of the drives compliant, or to control the drive system using
information from the force sensor located between the last link and
the tool. The second variant supports development of a special force
module, which can serve as addition to a position robot.
The
six-component force sensor is necessary to inform about the force
vector
[2]. This vector supplies the feedback, which decreases the deviation
of real forces
from set ones.
However, the inertia of drives and mistakes of the multicomponent
force sensor, especially by sharp and unexpected changes of a relief
and soft tissues properties, can cause extremely high force overloads
in transitional processes. It will cause painful sensations, injury
of soft tissues, and decreasing of the therapeutic effect. Therefore,
if it is impossible to supervise forces
developed by drives actively, it is possible to limit them by passive
compliance of special elastic element. It can be a spring or a
pneumatic compensator in the task of the tool approach to soft
tissues.
There
is a method without a usage of compensator
or using it with reduced sizes by determining the soft tissue form by
means of the distance location sensor to decrease the speed of the
tool approach.
Thus,
the force module for position/force control of medical robot can
include four devices
the
multicomponent force sensor,
the
compensator-limitator of the force,
the
location sensor,
the
tool imitating a physician hand.
Biomechanical
data for the force module design
One
of trends in development and programming of medical robots for manual
therapy and massage is a reproduction of the human hand mechanism.
The other approach is the development of various apparatus, which are
distinct from the anthropomorphic human hand and hand movements. Let
us consider the possibilities of the human hand sensibility
performing the procedures of manual therapy and massage.
The
tactile and skin receptors are especially sensitive at the tips of
fingers. The threshold shift of skin is 1,5
– 100 microns, that corresponds to pressure of 0,03 – 0,17 g/mm2.
Minimum pressure of the touch sensation is 0,0006 g/mm2
[3]. The feature of the tactile receptors is the quick adaptation to
applied constant forces, so the receptors can sense not the pressure,
but the pressure changes. The tactile space recognition of shapes –
stereognosis – connects with the divided perception of two adjacent
irritations. The tactile space resolution for human fingers is 3 mm.
The
muscle-joint mechanoreceptors, named proprioreceptors, present
muscular spindles located among muscular fibres, Golgy bodies located
in sinews, and Pachiny bodies. Muscular spindles and Golgy bodies are
raised by stretching, Pachiny bodies – by pressing. The feature of
the proprioreceptors is their small ability to force adaptation.
Thus, the muscle-joint receptors are force gauges. The dependence of
the afferent impulsation value A
from the force value F
is submitted to Vebber-Fihner law as well as the other biomechanical
objects in general:
.
There is
a question if these values of sensitivity, resolution, measured force
range can be achieved under the analog location of sense elements for
anthropomorphic manipulator. It is known that the high tactile
sensitivity and space resolution are necessary for the masseur and
the manual therapist during the diagnostic palpation.
The
characteristic methods, movements and force loadings for manual
therapy and massage are given in the Table
1 [4].
Table
1
№ |
Movements |
Methods |
Resistance
forces |
1 |
Pressing |
Touch,
Shiatsu, vibrations |
|
2 |
Compressing |
Pincement |
|
3 |
Stretching |
Tractions |
|
4 |
Drawing
off |
Vacuum
massage |
|
5 |
Rotation |
Pincement
and rotation |
|
6 |
Longitudinal
movements without sliding |
Point
massage |
|
7 |
Longitudinal
movements with sliding |
Stroking,
squeezing |
|
8 |
Spatial
movement with sliding |
Kneading,
ribbing |
|
9 |
Movements
with drawing off |
Ordinal
kneading, vacuum massage |
|
10 |
Extremity
rotation |
Passive
movements, postisometrical relaxation |
|
The
following designations are used:
Fe,
Мe
– the force and the torque of a soft tissue resistance
Fs,
Fi,
Fg,
Ff
– the elastic force, the inertia force, the gravitation force and
the friction force.
According
to the D’Alamber principle, we have:
The
forces and the torques of drives
should be balanced by the support reaction. The supports are
necessary by the manual massage and by the robot massage. The bone
tissue of the patient’s skeleton is less compliant than the soft
tissue. It can be used as a support for pressing and drawing methods.
Also, the second hand or several fingers of the masseur can serve as
the necessary support. Special devices are used as the supports in
the robot massage.
The
values of speed, acceleration, forces and pressures on the soft
tissues during the typical
movements are given in Table
2.
Table 2
|
Length
of part,
m
|
Speed,
m/s
|
Force,
N
|
The
area of the contact, -
m2
|
Pressure,
Pa
|
Stroking |
0,01–1,0 |
0,01–0,3 |
<1 |
10-4 –
10-2 |
<102 |
Squeezing |
0,01–1,0 |
0,01–0,2 |
1–100 |
10-4 –
5·10-3 |
102
– 105 |
Point
kneading |
>0,02 |
0,01-0,3 |
1–30 |
4·10-6 –
10-4 |
104 –
106 |
Pressure
kneading |
(0,01–0,1) |
0,01–0,3 |
1–100 |
10-4 –
5·10-3 |
102 –
105 |
Drawing
off kneading |
(0,01–0,1) |
0,01–0,2 |
1–50 |
|
|
Tractions |
0,01–1,0 |
0,01–0,1 |
1–50 |
|
|
Pulse
mobilization |
|
0,1–1,0 |
50–200 |
10-3 |
105 |
Forearm
rotation |
|
0,01–0,2 |
10–100 |
|
|
These values
determine just the ranges. The measurements by
means of the sense glove can give much more information during manual
procedures [5]. It would be a picture of the pressure
distribution over a contact surface and pressure changes in time p(s,
t). The forces, given in Table 2, were measured as total
forces by means of a strain balance. The integral estimation of the
forces
is
necessary for calculation of hand loads and wrist muscle loads, and,
in robot reproduction, for drive loads. At the same time, the
pressure p(s, t)
could be the efficiency criteria of the hand influence on soft
tissues.

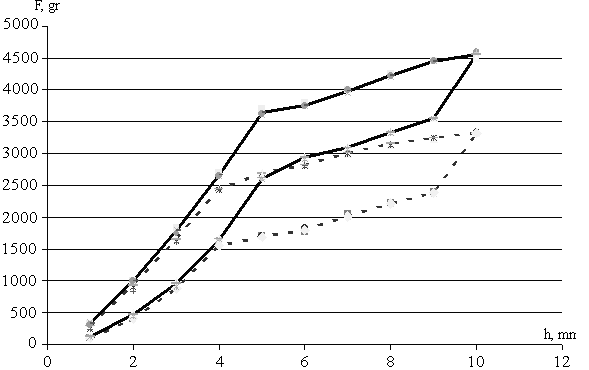

Fig.
1 shows the curves received by three tests
for experimental definition of dependences.
In these tests, the cylindrical tool with diameter of 22 mm presses
on a medial part of a front surface of the relaxed forearm. The back
surface of the forearm leans on a table. The curve 2 corresponds to
the part displaced by 2 mm relatively the previous part (the curve
1). The curve 3 corresponds to raising the tool from the pressed
state.
For performing the long
movements, i.e. in stroking, squeezing, kneading of the spine muscles
or in shoulder, forearm, hip movements, the physician uses his
shoulders and forearms. Generally, the space manipulations in these
procedures demand three degrees of freedom or three angular joints.
Fig.1
The
short and quick movements are performed with the wrist as a rule.
Three degrees of freedom are enough for the majority of the
procedures if the fingers are bent. At least one more degree of
freedom is necessary for delicate procedures and for grasping soft
tissues or extremities.
3. Force sensor
The
force sensor locates between the tool and the robot gripper [6]. This
place is determined by the nearness to a contact surface where
necessary force distribution is supplied.
The quantity of measured
force vector components is determined by a loading mode of the robot
tool in various procedures on soft tissues.
The
six-component sensor, i.e. with a cross flexible element design (fig.
2), gives the best information [2]. It measures several components of
the force vector in each sensing element.

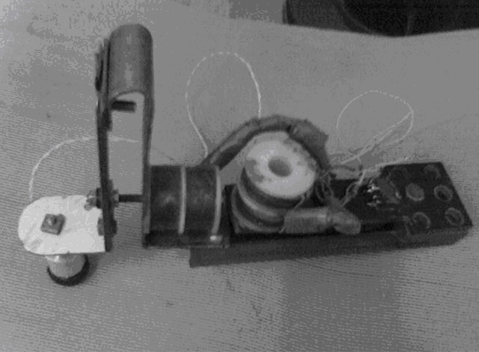

Fig. 2
The
satisfactory separation of three components of force vector FX,
MX,
MY,
can be achieved in a sensor, where a plane cross serves as the
elastic element. The three measurement bridges separate the three
components. The tangential component is formed by program as
,
- where
A is a
distance of sensor from the force making point.
The
tangential component can be measured in
two-component sensor directly, if the movement direction is
programmed [7].
The
necessity of the tangential component measurement appears not only by
obstacle reaction, but also for the estimation of friction forces in
the massage with sliding, i.e. by aromatherapy or by the massage of
mucous tissues.
The
simplest sensor measures the axial component. The design is
especially simple, if the elastic element is used also to increase
the passive compliance. In this case, the deformation of the sensing
element is not in the range of micrometers, as by using tensosensors,
but in the range of millimeters. So the inductive, capacity,
potentiometer, optical and pneumatic sensors can be used as the
deformation gauge.
Stiffness
of multi-component sensor is achieved only with tensometric elements.
Processing of sensor signals consists of the amplification of signals
as a rule by means of bridges, digital conversion and computer
processing.
4.
The compensator – force restrictor
For position/force control
of medical robot both active and passive compliance can be used.
The
passive compliance is more rational for the fast tool approach to
soft tissues. The contact sensor allows stopping the drive only with
delay by interaction of the tool and the patient’s body, causing
strains and deformations of soft tissues exceeding allowable ones.
The
mechanical spring can serve as the force restrictor, but the
developed forces are proportional to the spring deformation. The
spring can be pneumatic also. In this case, it is possible to adjust
the force value by pressure in a pneumatic cylinder. The pressure
stabilization in the pneumatic cylinder is achieved by means of a
pneumatic repeater [8].
The
pressure stabilization in pneumatic cylinder 1 during the piston
movement is shown in fig 3. The standard pneumatic repeater 2 repeats
the pressure p1
that is set by a regulator 3.
Fig. 3
However,
the positive pressure stabilization effect is decreased by hysteresis
in F = F (h)
characteristic because of the dry friction
in seals.
The dynamic equation of
“piston - tool” system looks like:
where m
– mass of moving parts, S
– square of the piston.
The
directions of z
and pS
coincided, when the piston moves with the constant speed, so:
,
that
is, the tool force is less than pS.
If
the directions of z
and pS
does not coincided,
then:
,
that is,
the tool force is more than pS.
The
experimental characteristics F(h)
for two pressures 300 kPa (dashed line) and 500 kPa (continuous line)
are given in fig. 4.
Fig.
4
The hysteresis can cause
self-oscillations, which can increase the efficiency in some massage
procedures.
The main advantage of the
pneumatic force module in comparison with the mechanical spring is
the possibility of program force control in a wide range.
5. Location sensors and
tools of the force module
The purpose of the location
sensors is contactless measurement of a distance to soft tissues
surface, including the binary one with a set threshold. First of all,
it is necessary for drive breaking control by fast approach to the
surface.
The
second task consists of nonprogrammable obstacles detection during
the procedures for safety.
The sensitive element of
the location sensor is placed on the non-operational zone of the
tool. The operational zone of the sensor should be symmetrical
according to tool axes, having about 20 – 30 mm in depth. This
means that the approach speed of 200 – 300 mm/s corresponds to
response time of 100 ms.
The
ultrasonic, optical, inductive, capacitive, and acoustic elements can
be used as a sensing element of the location sensor [6].
The main feature of the
medical robot for manual therapy and massage is mechanical contact
with the patient’s body. This contact is performed by the tool. In
techniques reproducing human hand movements, the tool should imitate
contact properties of human hand:
elasticity,
heat,
humidity,
friction properties
(roughness, smoothness, slide)
coordination possibilities
(multi-finger, grasping abilities)
The
simultaneous contact on a large body surface can be done by means of
a multi-hand robot, or a robot with two grippers or several fingers,
or by using a wide elastic self-orientating tool. It can imitate work
of several masseurs. The large body surface is subjected with
pressure during hydro massage, i.e. in Jacuzzi. In some techniques
the force concentration is necessary at small surfaces; therefore it
is enough one hand and one tool.
About
a half of massage techniques is pressing and another half –
techniques with grasping and drawing of soft tissues. Pressing robot
tools can imitate different parts of human arms and legs, i.e. thumb,
palm rib, palm plane, etc. Some masseurs use their feet and heels for
big forces, and they use any part of masseur’s body in Thai
massage.
In point massage, the high
values of force and pressure are achieved due to a small contact area
of the tool. The corresponding tool is fixed to the force module of
the robot.
The friction techniques can
be implemented with the tool with rough surface. The techniques with
minimal friction are performed by rollers or a tool with oiling by
aromatherapy. The contact tool surface should be covered with
materials, which have properties close to human skin ones, i.e.
suede, natural or artificial fur. The comfort in contact with human
body can be achieved by means of a tool heated by electricity, i.e.
by resistor, mounted in a tool.
The
medical robots in comparison with known apparatus have universality
and can use different massage devices, including vibrators, rollers,
needles, optical radiators, diagnostic devices, etc [9].
6. Force module designs
The force module is a unit
of the medical robot that is designed with the position/force
control. However, the force module can serve as a supplement to known
positional robots, i.e. industrial robots, which have the
characteristics corresponding to necessary requirements.
Let
us consider the force module system having three active movement
degrees, that is, three drives (fig. 5, a).
Fig. 5
This system is attractive
because it provides twists, pressings and displacements in different
procedures such as squeezing, kneading, and ordinary kneading.
Two
doubled tools works as one wide tool (fig 5, b). Operation on small
surfaces is provided by one small tool (fig 5, c). The divided tools
implement grasping or traction (fig 5, d). The force measurement is
provided by pressure control in pneumatic cylinder.
The
force module with spring compensator and the one-component force
sensor is presented in fig. 6. The spring is an elastic element of
the sensor, and its deformation is measured by the inductive sensor.
Fig. 6
The
experimental characteristic U=U(F),
where U –
voltage of the inductive sensor output, is given in fig 7.
Fig. 7
The force module with the
pneumatic compensator and the force sensor as in previous design is
given in fig. 8.
Fig.
8
The
force module with two-component force sensor measuring tangential Fs
and normal FsN
components is given in fig 9. The elastic elements of this sensor are
compensating springs, deformations of which are measured by inductive
sensors.
Fig.
9
The
force module of a telescope design with the spring compensator and
the one-component binary force sensor is shown in fig 10. This module
has hysteresis from the friction in moving elements by side forces.
Fig. 10
Conclusions
Taking into account the
above-stated, it is possible to draw the following conclusions:
the best adaptation of the
medical robot to the patient can be achieved by means of force
sensing according to the bionical designing approach,
some designs of the force
module are developed on the basis of common manufacturing
techniques. It is possible to imitate human hands movements with
greater precision using micro- and nanotechnologies,
References
Головин
В. Ф. Мехатронная система для манипуляций
на мягких тканях. / Мехатроника,
автоматизация, управление. М.: 2002, №7.
Фу К., Гонзалес
Р., Ли. Робототехника. Изд-во Мир, М.:19
Есаков А. И.
Нейрофизиологические основы тактильного
восприятия. М.: 1971
Головин
В. Ф., Леготин С. Д., Шашилов И. Н.
Биомеханический роботный комплекс
исследования упругих свойств мягких
тканей. сб. трудов МГИУ, М., 1998
Разумов А.Н.,
Кузнецов О.Ф., Ерёмушкин М.А., Головин
В.Ф. Основные направления и перспективы
клинического использования роботных
систем для манипуляций на мягких тканях.
Вопросы курортологии, М.: 2004
Гориневский Д.
М., Формальский А. М., Шнейдер А. Ю.
Управление манипуляционными системами
на основе информации об усилиях. М.:
физико – математическая литература,
1994
Golovin
V. Robot for massage. Proceedings of IARP, 2-nd Workshop on medical
Robotics, Heidelberg, 1997
Хитрово А.А.
Проблемы автоматизации массажа.
Применение пневматики и гидравлики.
Институт проблем управления им.
В.А.Трапезникова РАН, М.: 20
Golovin V., Grib A.
Computer assisted robot for massage and mobilization. Proc.
“Computer Science and Information Technologies” Conference
Greece University of Patras, 2002
|
|
